Modbus Wert zu Boolean splitten
-
Hallo zusammen,
ich vermute das wurde schon mal behandelt, ich finde gerade nur nicht die richtigen Suchbegriffe.Worum gehts: Ich empfange über meinen Modbus-Adapter aus meiner Wago Steuerung ein Word, in diesem sind halt 16 Bits also Booleans die ich gerne aufsplitten würde. Wonach müsste ich jetzt suchen um mich dort ein zu lesen?
gruss Markus
-
-
@paul53
Danke für den Hinweis,

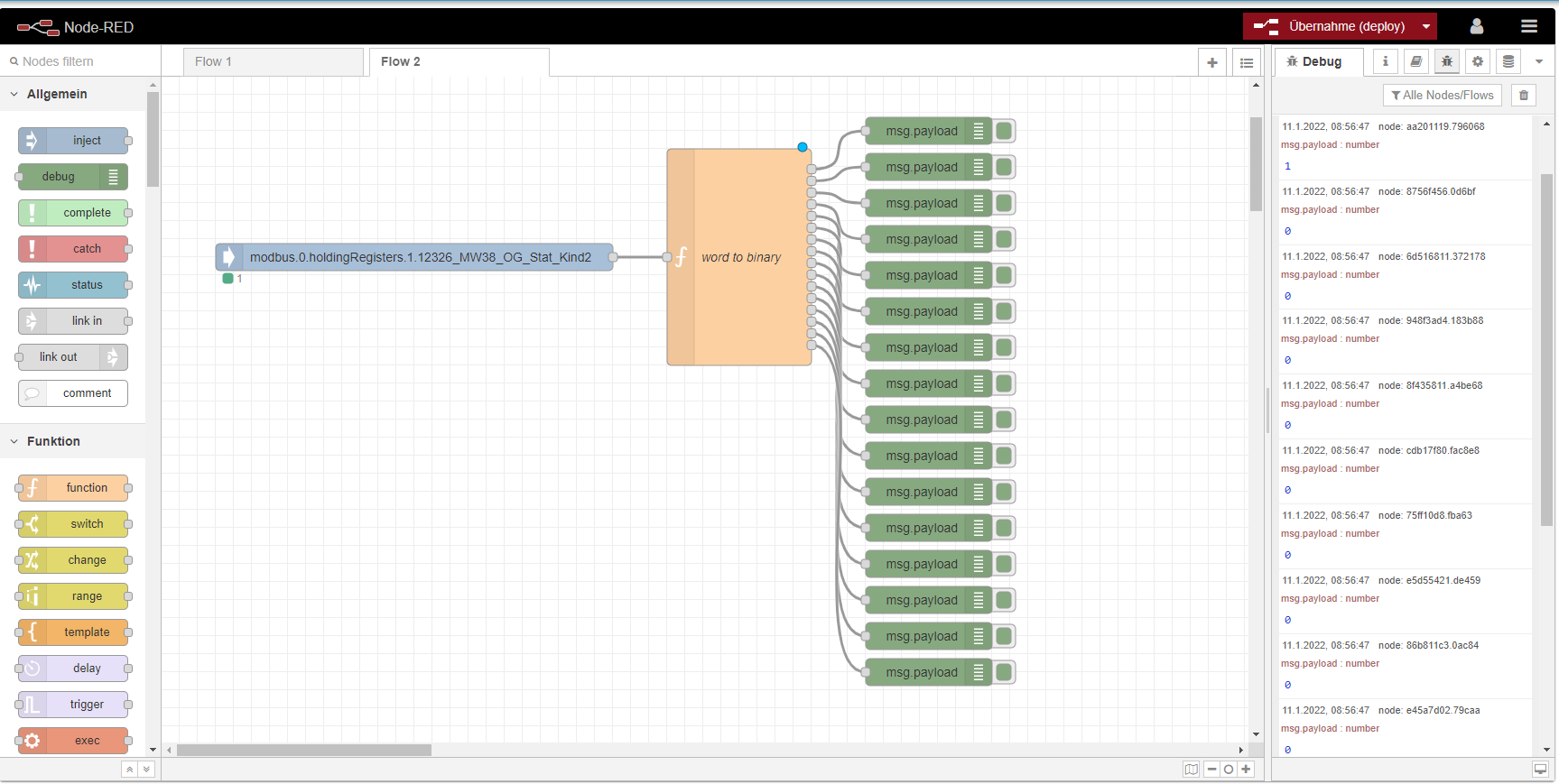

ich habe mir jetzt einen passenden Flow bei Node-Red angelegt. Habe den aber nicht selber erfunden sondern nur auf meine Bedürfnisse angepasst.[ { "id": "7b93b0c.402c65", "type": "tab", "label": "Flow 2", "disabled": false, "info": "" }, { "id": "df41c583.24ff58", "type": "function", "z": "7b93b0c.402c65", "name": "word to binary", "func": "// initialize bit array to 0s\nvar bits0thru31 = [0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0];\n\nfor (i = 0; i < 32; i++){\n bits0thru31[i] = (msg.payload >> i) & 0x1;\n}\n\nvar bit0 = {payload: bits0thru31[0]};\nvar bit1 = {payload: bits0thru31[1]};\nvar bit2 = {payload: bits0thru31[2]};\nvar bit3 = {payload: bits0thru31[3]};\nvar bit4 = {payload: bits0thru31[4]};\nvar bit5 = {payload: bits0thru31[5]};\nvar bit6 = {payload: bits0thru31[6]};\nvar bit7 = {payload: bits0thru31[7]};\nvar bit8 = {payload: bits0thru31[8]};\nvar bit9 = {payload: bits0thru31[9]};\nvar bit10 = {payload: bits0thru31[10]};\nvar bit11 = {payload: bits0thru31[11]};\nvar bit12 = {payload: bits0thru31[12]};\nvar bit13 = {payload: bits0thru31[13]};\nvar bit14 = {payload: bits0thru31[14]};\nvar bit15 = {payload: bits0thru31[15]};\n\nreturn[ bit0, bit1, bit2, bit3, bit4, bit5, bit6, bit7, bit8, bit9, bit10, bit11, bit12, bit13, bit14, bit15 ];\n", "outputs": 16, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 640, "y": 400, "wires": [ [ "aa201119.796068" ], [ "8756f456.0d6bf" ], [ "6d516811.372178" ], [ "948f3ad4.183b88" ], [ "8f435811.a4be68" ], [ "cdb17f80.fac8e8" ], [ "75ff10d8.fba63" ], [ "e5d55421.de459" ], [ "86b811c3.0ac84" ], [ "e45a7d02.79caa" ], [ "b2aefbfc.aa2338" ], [ "2617a6bb.218c8a" ], [ "97ee1c07.1628" ], [ "79b46191.21538" ], [ "7e37e721.5da318" ], [ "3b04cc79.d38d54" ] ] }, { "id": "aa201119.796068", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 260, "wires": [] }, { "id": "8756f456.0d6bf", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "false", "x": 850, "y": 300, "wires": [] }, { "id": "6d516811.372178", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "false", "x": 850, "y": 340, "wires": [] }, { "id": "948f3ad4.183b88", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 380, "wires": [] }, { "id": "8f435811.a4be68", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 420, "wires": [] }, { "id": "cdb17f80.fac8e8", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 460, "wires": [] }, { "id": "75ff10d8.fba63", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 500, "wires": [] }, { "id": "e5d55421.de459", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "tosidebar": true, "console": false, "tostatus": false, "complete": "payload", "targetType": "msg", "statusVal": "", "statusType": "auto", "x": 850, "y": 540, "wires": [] }, { "id": "e3ba4514.dd9e88", "type": "ioBroker in", "z": "7b93b0c.402c65", "name": "", "topic": "modbus.0.holdingRegisters.1.12326_MW38_OG_Stat_Kind2", "payloadType": "value", "onlyack": "", "func": "all", "gap": "", "fireOnStart": "true", "x": 280, "y": 400, "wires": [ [ "df41c583.24ff58" ] ] }, { "id": "86b811c3.0ac84", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "tosidebar": true, "console": false, "tostatus": false, "complete": "payload", "targetType": "msg", "statusVal": "", "statusType": "auto", "x": 850, "y": 580, "wires": [] }, { "id": "e45a7d02.79caa", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 620, "wires": [] }, { "id": "b2aefbfc.aa2338", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 660, "wires": [] }, { "id": "2617a6bb.218c8a", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 700, "wires": [] }, { "id": "97ee1c07.1628", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 740, "wires": [] }, { "id": "79b46191.21538", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 780, "wires": [] }, { "id": "7e37e721.5da318", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 820, "wires": [] }, { "id": "3b04cc79.d38d54", "type": "debug", "z": "7b93b0c.402c65", "name": "", "active": true, "console": "false", "complete": "payload", "x": 850, "y": 860, "wires": [] } ]
Im Modbus-Adapter habe ich dann Unsigned 16bit (Little Endian) verwendet. In der Wago SPS schreibe ich auf ein %MW.
Falls mal jemand diese Informationen brauchen sollte.
