HUE Bewegungsmelder Roborock integr.
This topic has been deleted. Only users with topic management privileges can see it.
-
@peterfido
Mit der neuen Schaltung kann man per HUE schalter einmal zweimal klick nicht das licht ein und ausschalten es geht nur einschalten einschalten.
Das war in der vorherigen Schaltung korrekt da war jeder klick auf den schalter ein aus ein aus schalten. -
@aphofis Guck Dir mal die Function genauer an. Da ist ein Bemerkungstext drin, dass eine Zeile auskommentiert werden soll, wenn es produktiv genutzt wird. Evtl. war es das dann schon. Ich habe die Hardware nicht da, und habe daher die Lampe mit der Function simuliert.
Es ist nicht einfach, da was zu "testen", was man nicht hat.
-
Du meinst in der Variable !?
flow.set("lampe_ist", msg.payload);Hatte ich auskommentiert, geht dann aber trotzdem nicht.
-
@aphofis Da kommt dann die Fehlersuche. Also ein Node, z.B. den vom Bewegungsmelder deaktivieren, und schauen, ob es dann in der Simulation läuft. Man kann auch das Topic setzen und am Ende auswerten, wer die Lampe eingeschaltet hat.
Die Abfrage der Lampe_ist kann auch von oben wieder weg und nach unten als Ersatz für den von mir mit "kein Tuya" 'eingerahmten' Block.
-
@peterfido
Also es funktioniert soweit, doch wenn der Roboter status 5 hat und man in den BWM läuft geht trotzdem das Licht an und wenn man es dann per Schalter ausschalten will, muss man das 3-4 mal machen bis das licht aus bleibt. Wie man jetzt herausfindet wer nun das licht schaltet weiß ich nicht.[ { "id": "a4c8574588c0de3c", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "motion:false", "rules": [ { "t": "set", "p": "payload.motion", "pt": "msg", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 450, "y": 540, "wires": [ [ "169c9cd74337485f" ] ] }, { "id": "f6bc1b429099ca57", "type": "switch", "z": "f40fbc4eb5ac4f7a", "name": "Schalter", "property": "stopp", "propertyType": "flow", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 800, "y": 500, "wires": [ [], [ "ee120a8678492945" ] ] }, { "id": "f2bfa3e6a90d48ed", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "Motion", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "payload.motion", "tot": "msg" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 610, "y": 500, "wires": [ [ "a7c05960eac63d95" ] ] }, { "id": "8803280db34eb22b", "type": "comment", "z": "f40fbc4eb5ac4f7a", "name": "Bewegungsmelder Simulator Beginn", "info": "", "x": 160, "y": 420, "wires": [] }, { "id": "5925b1db569c695b", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "payload", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "on", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 620, "y": 540, "wires": [ [ "5f9435538ec534ed" ] ] }, { "id": "95fda7a91b84c03f", "type": "switch", "z": "f40fbc4eb5ac4f7a", "name": "1000?", "property": "payload", "propertyType": "msg", "rules": [ { "t": "eq", "v": "1000", "vt": "num" }, { "t": "eq", "v": "", "vt": "num" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 250, "y": 600, "wires": [ [ "ee5a65e2896d189b" ], [] ] }, { "id": "ee120a8678492945", "type": "switch", "z": "f40fbc4eb5ac4f7a", "name": "Robi", "property": "BWM", "propertyType": "flow", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 810, "y": 460, "wires": [ [ "8f4fcec5a545127f" ], [] ] }, { "id": "3648551e97ec2cab", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "flow/stop", "rules": [ { "t": "set", "p": "stopp", "pt": "flow", "to": "true", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 620, "y": 580, "wires": [ [] ] }, { "id": "a8b609cc983f0b37", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "löscheflow.stopp", "rules": [ { "t": "set", "p": "stopp", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1220, "y": 520, "wires": [ [] ] }, { "id": "0e43213215238d27", "type": "function", "z": "f40fbc4eb5ac4f7a", "name": "Variab.Ini + Ausg.", "func": "node.status({ text: msg.payload });\n\nreturn msg;", "outputs": 1, "timeout": 0, "noerr": 0, "initialize": "// Der Code hier wird ausgeführt,\n// wenn der Node gestartet wird\nflow.set(\"stopp\", false);\nflow.set(\"BWM\", true);\n", "finalize": "", "libs": [], "x": 1430, "y": 460, "wires": [ [ "f1be18a24ca143f6" ] ] }, { "id": "6500453922363ac9", "type": "ioBroker in", "z": "f40fbc4eb5ac4f7a", "name": "Robi", "attrname": "payload", "topic": "mihome-vacuum.0.info.state", "payloadType": "value", "onlyack": "", "func": "all", "gap": "", "fireOnStart": "false", "outFormat": "MQTT", "x": 370, "y": 700, "wires": [ [ "81fd4c871d668d04" ] ] }, { "id": "169c9cd74337485f", "type": "function", "z": "f40fbc4eb5ac4f7a", "name": "Ausg.BWM", "func": "\nreturn msg;", "outputs": 1, "timeout": 0, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 450, "y": 500, "wires": [ [ "f2bfa3e6a90d48ed" ] ] }, { "id": "c6d6a47028727285", "type": "ioBroker in", "z": "f40fbc4eb5ac4f7a", "name": "KüSchalter", "attrname": "payload", "topic": "hue.0.Hue_GordonX.Küche_Schalter.buttonevent", "payloadType": "value", "onlyack": "", "func": "all", "gap": "", "fireOnStart": "false", "outFormat": "MQTT", "x": 80, "y": 600, "wires": [ [ "95fda7a91b84c03f" ] ] }, { "id": "81fd4c871d668d04", "type": "switch", "z": "f40fbc4eb5ac4f7a", "name": "8?", "property": "payload", "propertyType": "msg", "rules": [ { "t": "eq", "v": "8", "vt": "num" }, { "t": "neq", "v": "8", "vt": "num" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 490, "y": 680, "wires": [ [ "638dc14da90f5eb4" ], [ "542b940ecfefa127" ] ] }, { "id": "638dc14da90f5eb4", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "setze Flow.BWM", "rules": [ { "t": "set", "p": "BWM", "pt": "flow", "to": "true", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 650, "y": 660, "wires": [ [ "3803f5607daeb485" ] ] }, { "id": "542b940ecfefa127", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "lösche Flow.BWM", "rules": [ { "t": "set", "p": "BWM", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 650, "y": 700, "wires": [ [ "3803f5607daeb485" ] ] }, { "id": "2bb3725204a30905", "type": "comment", "z": "f40fbc4eb5ac4f7a", "name": "evtl. gesperrt durch??", "info": "", "x": 800, "y": 380, "wires": [] }, { "id": "a7c05960eac63d95", "type": "switch", "z": "f40fbc4eb5ac4f7a", "name": "nur true", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 640, "y": 460, "wires": [ [ "f6bc1b429099ca57" ], [] ] }, { "id": "3803f5607daeb485", "type": "debug", "z": "f40fbc4eb5ac4f7a", "name": "debug 9", "active": false, "tosidebar": true, "console": false, "tostatus": false, "complete": "true", "targetType": "full", "statusVal": "", "statusType": "auto", "x": 820, "y": 680, "wires": [] }, { "id": "86ed2879e6ab1742", "type": "comment", "z": "f40fbc4eb5ac4f7a", "name": "Bewegungsmelder Simulator Ende", "info": "", "x": 160, "y": 560, "wires": [] }, { "id": "4deb5666bac8cf44", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "on/off", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "on", "fromt": "str", "to": "true", "tot": "bool" }, { "t": "change", "p": "payload", "pt": "msg", "from": "off", "fromt": "str", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 890, "y": 560, "wires": [ [ "d2eeea8c88021d24" ] ] }, { "id": "d2eeea8c88021d24", "type": "switch", "z": "f40fbc4eb5ac4f7a", "name": "", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" }, { "t": "eq", "v": "", "vt": "str" } ], "checkall": "true", "repair": false, "outputs": 3, "x": 1010, "y": 560, "wires": [ [ "1584a54e77837dbd" ], [ "a8b609cc983f0b37", "1584a54e77837dbd" ], [] ] }, { "id": "774f8f940a2c4c96", "type": "switch", "z": "f40fbc4eb5ac4f7a", "name": "", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" }, { "t": "eq", "v": "", "vt": "str" } ], "checkall": "true", "repair": false, "outputs": 3, "x": 1190, "y": 460, "wires": [ [ "0e43213215238d27" ], [ "0e43213215238d27" ], [] ] }, { "id": "bcc31acbfde45d97", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "on/off", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "on", "fromt": "str", "to": "true", "tot": "bool" }, { "t": "change", "p": "payload", "pt": "msg", "from": "off", "fromt": "str", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 990, "y": 460, "wires": [ [ "774f8f940a2c4c96" ] ] }, { "id": "8f4fcec5a545127f", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "on", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "on", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 810, "y": 420, "wires": [ [ "e8865a546b6ee97f" ] ] }, { "id": "ee5a65e2896d189b", "type": "ioBroker get", "z": "f40fbc4eb5ac4f7a", "name": "Virtuelle Lampe", "topic": "0_userdata.0.GordonX-Home.0.Küche.Virtueller_Schalter_1", "attrname": "payload", "payloadType": "value", "errOnInvalidState": "nothing", "x": 340, "y": 640, "wires": [ [ "661eb84a02820976" ] ] }, { "id": "661eb84a02820976", "type": "switch", "z": "f40fbc4eb5ac4f7a", "name": "", "property": "payload", "propertyType": "msg", "rules": [ { "t": "false" }, { "t": "true" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 430, "y": 580, "wires": [ [ "a8a0cb4a1682f9f2", "3bd2c8cd8fbc4e0d" ], [ "638dc14da90f5eb4", "d5b7b0bf08213264", "8791ca72f579691c" ] ] }, { "id": "3c6f79231d0fc04b", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "Alles auf Anfang", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1220, "y": 560, "wires": [ [ "0e43213215238d27" ] ] }, { "id": "d5b7b0bf08213264", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "stop", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "stop", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 610, "y": 620, "wires": [ [ "5f9435538ec534ed", "9b6cc9d834347e2b" ] ] }, { "id": "5f9435538ec534ed", "type": "mytimeout", "z": "f40fbc4eb5ac4f7a", "name": "10min.", "outtopic": "", "outsafe": "on", "outwarning": "Warning", "outunsafe": "off", "warning": "10", "timer": "600", "debug": false, "ndebug": false, "ignoreCase": false, "repeat": false, "again": false, "x": 770, "y": 560, "wires": [ [ "4deb5666bac8cf44" ], [] ] }, { "id": "e8865a546b6ee97f", "type": "mytimeout", "z": "f40fbc4eb5ac4f7a", "name": "3Min.", "outtopic": "", "outsafe": "on", "outwarning": "Warning", "outunsafe": "off", "warning": "10", "timer": "180", "debug": false, "ndebug": false, "ignoreCase": false, "repeat": false, "again": false, "x": 990, "y": 500, "wires": [ [ "bcc31acbfde45d97" ], [] ] }, { "id": "166ff2a331d49e9e", "type": "hue-bridge-node", "z": "f40fbc4eb5ac4f7a", "name": "Hue", "bridge": "cbd54dbabf6f65be", "autoupdates": true, "skipglobalevents": false, "initevents": false, "x": 130, "y": 500, "wires": [ [ "d500eca26ab86278" ] ] }, { "id": "d500eca26ab86278", "type": "hue-motion", "z": "f40fbc4eb5ac4f7a", "name": "KüMo", "bridge": "cbd54dbabf6f65be", "sensorid": "7529c8d8-9f5c-451d-ba56-70cacda84564", "skipevents": false, "initevents": true, "x": 270, "y": 500, "wires": [ [ "169c9cd74337485f", "a4c8574588c0de3c" ] ] }, { "id": "631201f88292c2d6", "type": "ioBroker out", "z": "f40fbc4eb5ac4f7a", "name": "U-rechts", "topic": "tuya.0.bfb09eea5dad3699abyrbu.20", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1320, "y": 740, "wires": [] }, { "id": "400b88291d913b81", "type": "ioBroker out", "z": "f40fbc4eb5ac4f7a", "name": "Küche Decke", "topic": "tuya.0.bfe4af976feb74d845vugp.1", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1330, "y": 620, "wires": [] }, { "id": "ce64922d78c18bb2", "type": "ioBroker out", "z": "f40fbc4eb5ac4f7a", "name": "Virtuel Switch 1", "topic": "0_userdata.0.GordonX-Home.0.Küche.Virtueller_Schalter_1", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1340, "y": 680, "wires": [] }, { "id": "b16aaa4000874ffd", "type": "debug", "z": "f40fbc4eb5ac4f7a", "name": "Küche", "active": true, "tosidebar": true, "console": true, "tostatus": false, "complete": "payload", "targetType": "msg", "statusVal": "", "statusType": "auto", "x": 1440, "y": 860, "wires": [] }, { "id": "f5195df37114b7de", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "Küche", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "1000", "fromt": "str", "to": "Küche", "tot": "str" }, { "t": "change", "p": "payload", "pt": "msg", "from": "true", "fromt": "bool", "to": "Küche eingeschaltet", "tot": "str" }, { "t": "change", "p": "payload", "pt": "msg", "from": "false", "fromt": "bool", "to": "Küche ausgeschaltet", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1310, "y": 860, "wires": [ [ "b16aaa4000874ffd" ] ] }, { "id": "08276b1f6580fc56", "type": "ioBroker out", "z": "f40fbc4eb5ac4f7a", "name": "U-links", "topic": "hue.0.Hue_GordonX.Küche_Unterschr_Links.on", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1430, "y": 800, "wires": [] }, { "id": "587e1a24a2250226", "type": "inject", "z": "f40fbc4eb5ac4f7a", "name": "", "props": [ { "p": "payload" }, { "p": "topic", "vt": "str" } ], "repeat": "", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "", "payload": "1000", "payloadType": "str", "x": 90, "y": 720, "wires": [ [ "95fda7a91b84c03f" ] ] }, { "id": "f3e6cb95fd339887", "type": "ioBroker in", "z": "f40fbc4eb5ac4f7a", "name": "VIS-Küche", "attrname": "payload", "topic": "0_userdata.0.GordonX-Home.0.Küche.VIS-Küche", "payloadType": "value", "onlyack": "", "func": "all", "gap": "", "fireOnStart": "false", "outFormat": "MQTT", "x": 80, "y": 660, "wires": [ [ "95fda7a91b84c03f" ] ] }, { "id": "3c0717cd3d6e108e", "type": "delay", "z": "f40fbc4eb5ac4f7a", "name": "100ms", "pauseType": "delay", "timeout": "100", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "allowrate": false, "outputs": 1, "x": 1310, "y": 800, "wires": [ [ "08276b1f6580fc56" ] ] }, { "id": "805251b70f5d5a93", "type": "inject", "z": "f40fbc4eb5ac4f7a", "name": "Test Bewegung", "props": [ { "p": "payload.motion", "v": "true", "vt": "bool" }, { "p": "topic", "vt": "str" } ], "repeat": "", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "Bewegungsmelder", "x": 240, "y": 460, "wires": [ [ "169c9cd74337485f", "e1f5f49327a29a8a" ] ] }, { "id": "e1f5f49327a29a8a", "type": "change", "z": "f40fbc4eb5ac4f7a", "name": "motion:false", "rules": [ { "t": "set", "p": "payload.motion", "pt": "msg", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 450, "y": 460, "wires": [ [ "169c9cd74337485f" ] ] }, { "id": "90f844739a331c64", "type": "junction", "z": "f40fbc4eb5ac4f7a", "x": 1060, "y": 600, "wires": [ [ "3c6f79231d0fc04b", "a8b609cc983f0b37" ] ] }, { "id": "f1be18a24ca143f6", "type": "junction", "z": "f40fbc4eb5ac4f7a", "x": 1160, "y": 680, "wires": [ [ "ce64922d78c18bb2", "f5195df37114b7de", "631201f88292c2d6", "400b88291d913b81", "3c0717cd3d6e108e" ] ] }, { "id": "1584a54e77837dbd", "type": "junction", "z": "f40fbc4eb5ac4f7a", "x": 1100, "y": 480, "wires": [ [ "612158a90f7d1a23" ] ] }, { "id": "e9a12ac84d11dd0e", "type": "junction", "z": "f40fbc4eb5ac4f7a", "x": 980, "y": 640, "wires": [ [ "90f844739a331c64" ] ] }, { "id": "a8a0cb4a1682f9f2", "type": "junction", "z": "f40fbc4eb5ac4f7a", "x": 540, "y": 560, "wires": [ [ "5925b1db569c695b" ] ] }, { "id": "3bd2c8cd8fbc4e0d", "type": "junction", "z": "f40fbc4eb5ac4f7a", "x": 540, "y": 580, "wires": [ [ "3648551e97ec2cab" ] ] }, { "id": "9b6cc9d834347e2b", "type": "junction", "z": "f40fbc4eb5ac4f7a", "x": 880, "y": 620, "wires": [ [ "e8865a546b6ee97f" ] ] }, { "id": "612158a90f7d1a23", "type": "junction", "z": "f40fbc4eb5ac4f7a", "x": 1260, "y": 480, "wires": [ [ "0e43213215238d27" ] ] }, { "id": "8791ca72f579691c", "type": "junction", "z": "f40fbc4eb5ac4f7a", "x": 560, "y": 640, "wires": [ [ "e9a12ac84d11dd0e" ] ] }, { "id": "cbd54dbabf6f65be", "type": "hue-bridge", "name": "Hue GordonX", "bridge": "192.168.0.8", "key": "SlfyXwpcaEvRN0d1DU2JrrOlwrm9Debhhm9A4E-d", "worker": "10", "autoupdates": true, "disableupdates": false } ]
-
@aphofis Das ist eine neue Variante. Meine "Simulation" des HUE Bewegungsmelders hast Du noch nicht verinnerlicht. Die ist rein für Tests, oder, wenn man wie ich keinen HUE BWM hat. Das ist nur für die Simulation zum Testen, und dann auch erst nach einer Zeit x vorgesehen. Jetzt wird zeitgleich payload.motion auf false gesetzt, auch wenn der HUE BWM meldet.
Ich habe es jetzt nicht importiert / ausprobiert.
Eine Idee:

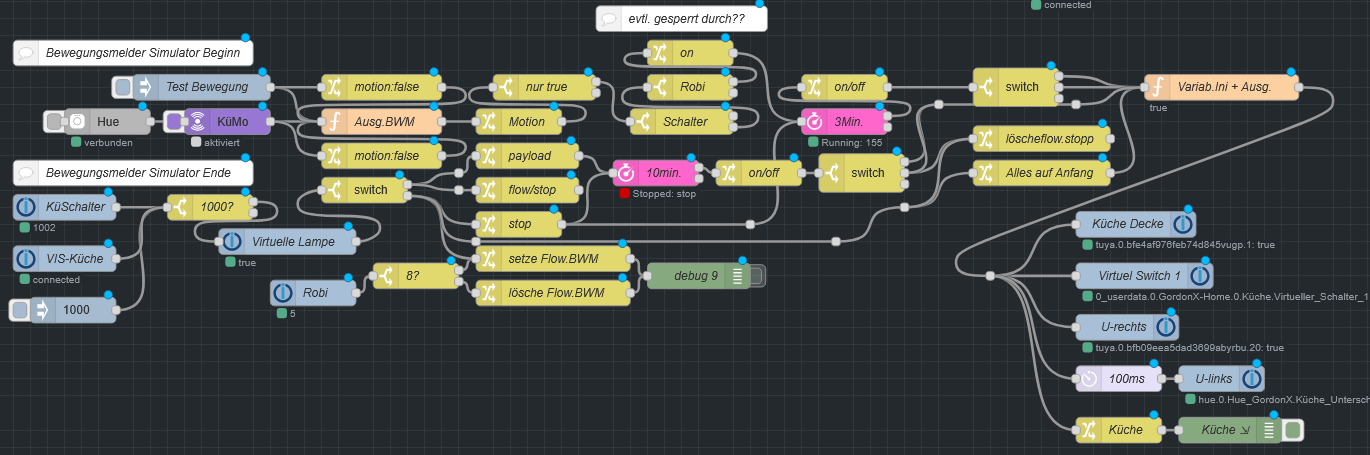

Der HUE Bewegungsmelder geht seine eigenen Wege. Wenn das Licht nicht aus, bzw. gleich wieder an geht, könnte einer erkannten, oder noch anstehenden Bewegung geschuldet sein. Da könnte man eine Sperrvarable setzen, bzw. nur Änderungen durchlassen. Zumindest lief die von mir zuletzt gepostete Variante in meiner Testumgebung. Möglich, dass Dein BWM / Taster / Schalter da was unerwartetes losschickt.Hier mein aufgeräumter Flow.
[ { "id": "b802892eed83e90f", "type": "tab", "label": "Flow 8", "disabled": false, "info": "", "env": [] }, { "id": "f00e20abd94ff43d", "type": "junction", "z": "b802892eed83e90f", "x": 1120, "y": 660, "wires": [ [ "141a052859674836", "574a9f7ddc4f663b", "b6322a40cf4557b3" ] ] }, { "id": "423ea0f1dc0e4d31", "type": "junction", "z": "b802892eed83e90f", "x": 1960, "y": 460, "wires": [ [ "ff32f89078260f0e", "67e2e01a1266d1c3", "e98816534075b0f5", "21f36ea2695afe19", "a695276a00fe8f61" ] ] }, { "id": "ae8ceff406113f11", "type": "junction", "z": "b802892eed83e90f", "x": 1140, "y": 260, "wires": [ [ "ba0aea0ff71ebc3d" ] ] }, { "id": "9c7c62ee37b6b12c", "type": "junction", "z": "b802892eed83e90f", "x": 520, "y": 60, "wires": [ [ "d24a5429e472b18a" ] ] }, { "id": "d96f128a59bdfbb4", "type": "junction", "z": "b802892eed83e90f", "x": 900, "y": 440, "wires": [ [ "84bd4ea1d044fea4", "ed2607cafe826532" ] ] }, { "id": "84bd4ea1d044fea4", "type": "junction", "z": "b802892eed83e90f", "x": 980, "y": 360, "wires": [ [ "be66da991b562e24" ] ] }, { "id": "be66da991b562e24", "type": "junction", "z": "b802892eed83e90f", "x": 1280, "y": 360, "wires": [ [ "fa5f2b5bcd258a98" ] ] }, { "id": "8355cf791b8a8b1b", "type": "junction", "z": "b802892eed83e90f", "x": 580, "y": 560, "wires": [ [ "e22b60db6265e908" ] ] }, { "id": "1ee1fe89c1628b34", "type": "junction", "z": "b802892eed83e90f", "x": 580, "y": 560, "wires": [ [ "e22b60db6265e908" ] ] }, { "id": "f3921b2658b5916c", "type": "junction", "z": "b802892eed83e90f", "x": 240, "y": 560, "wires": [ [ "1ee1fe89c1628b34" ] ] }, { "id": "a2104cdffd7ca75f", "type": "inject", "z": "b802892eed83e90f", "name": "Test Bewegung", "props": [ { "p": "payload.motion", "v": "true", "vt": "bool" }, { "p": "topic", "vt": "str" } ], "repeat": "", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "Bewegungsmelder", "x": 140, "y": 380, "wires": [ [ "a919a4c30d900c39", "0150c15cf7b51170" ] ] }, { "id": "ed06e85de97289c8", "type": "debug", "z": "b802892eed83e90f", "name": "debug 3", "active": true, "tosidebar": true, "console": false, "tostatus": false, "complete": "true", "targetType": "full", "statusVal": "", "statusType": "auto", "x": 2000, "y": 360, "wires": [] }, { "id": "a919a4c30d900c39", "type": "delay", "z": "b802892eed83e90f", "name": "", "pauseType": "delay", "timeout": "30", "timeoutUnits": "seconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "allowrate": false, "outputs": 1, "x": 150, "y": 460, "wires": [ [ "bee64eb116d76ed1" ] ] }, { "id": "bee64eb116d76ed1", "type": "change", "z": "b802892eed83e90f", "name": "motion:false", "rules": [ { "t": "set", "p": "payload.motion", "pt": "msg", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 350, "y": 460, "wires": [ [ "0150c15cf7b51170" ] ] }, { "id": "ab41883686b27cc0", "type": "switch", "z": "b802892eed83e90f", "name": "Schalter", "property": "stopp", "propertyType": "flow", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 920, "y": 260, "wires": [ [], [ "01fea99b98c641a3" ] ] }, { "id": "0395e4bbb7c67e21", "type": "change", "z": "b802892eed83e90f", "name": "Motion", "rules": [ { "t": "set", "p": "bewegung", "pt": "flow", "to": "payload.motion", "tot": "msg" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 670, "y": 320, "wires": [ [] ] }, { "id": "59792b228df9eb30", "type": "comment", "z": "b802892eed83e90f", "name": "Beginn << Für Simulation Für Simulation Für Simulation Für Simulation >>", "info": "", "x": 280, "y": 300, "wires": [] }, { "id": "93f0d4c85ab42e59", "type": "change", "z": "b802892eed83e90f", "name": "", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "on", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 710, "y": 400, "wires": [ [ "ed2607cafe826532" ] ] }, { "id": "e22b60db6265e908", "type": "switch", "z": "b802892eed83e90f", "name": "1000?", "property": "payload", "propertyType": "msg", "rules": [ { "t": "eq", "v": "1000", "vt": "num" }, { "t": "eq", "v": "", "vt": "num" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 310, "y": 660, "wires": [ [ "6ae2e0e61f81faeb" ], [] ] }, { "id": "01fea99b98c641a3", "type": "switch", "z": "b802892eed83e90f", "name": "Robi", "property": "BWM", "propertyType": "flow", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 1050, "y": 260, "wires": [ [ "ae8ceff406113f11" ], [] ] }, { "id": "7eea52e80cbe51f0", "type": "change", "z": "b802892eed83e90f", "name": "setze stopp", "rules": [ { "t": "set", "p": "stopp", "pt": "flow", "to": "true", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 890, "y": 600, "wires": [ [] ] }, { "id": "574a9f7ddc4f663b", "type": "change", "z": "b802892eed83e90f", "name": "lösche stopp", "rules": [ { "t": "set", "p": "stopp", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1370, "y": 600, "wires": [ [] ] }, { "id": "331a07cfba2d7df1", "type": "function", "z": "b802892eed83e90f", "name": "Variablen Ini + Ausgabe", "func": "node.status({ text: msg.payload });\n\nreturn msg;", "outputs": 1, "timeout": 0, "noerr": 0, "initialize": "// Der Code hier wird ausgeführt,\n// wenn der Node gestartet wird\n\nflow.set(\"stopp\", false);\nflow.set(\"BWM\", true);\nflow.set(\"bewegung\", false);\n", "finalize": "", "libs": [], "x": 1770, "y": 380, "wires": [ [ "ed06e85de97289c8", "423ea0f1dc0e4d31" ] ] }, { "id": "b9692c9131fb2ef5", "type": "ioBroker in", "z": "b802892eed83e90f", "name": "Robi", "attrname": "payload", "topic": "mihome-vacuum.0.info.state", "payloadType": "value", "onlyack": "", "func": "all", "gap": "", "fireOnStart": "false", "outFormat": "MQTT", "x": 90, "y": 780, "wires": [ [ "6b214a0a59b5e04a" ] ] }, { "id": "0150c15cf7b51170", "type": "function", "z": "b802892eed83e90f", "name": "Ausgang BWM", "func": "\nreturn msg;", "outputs": 1, "timeout": 0, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 360, "y": 360, "wires": [ [ "0395e4bbb7c67e21" ] ] }, { "id": "b6b4c157c31e3701", "type": "ioBroker in", "z": "b802892eed83e90f", "name": "KüSchalter", "attrname": "payload", "topic": "hue.0.Hue_GordonX.Küche_Schalter.buttonevent", "payloadType": "value", "onlyack": "", "func": "all", "gap": "", "fireOnStart": "false", "outFormat": "MQTT", "x": 100, "y": 680, "wires": [ [ "e22b60db6265e908" ] ] }, { "id": "6b214a0a59b5e04a", "type": "switch", "z": "b802892eed83e90f", "name": "8?", "property": "payload", "propertyType": "msg", "rules": [ { "t": "eq", "v": "8", "vt": "num" }, { "t": "neq", "v": "8", "vt": "num" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 630, "y": 780, "wires": [ [ "7b9c0fa6e795af2d" ], [ "ccadbb1ee1de29e6" ] ] }, { "id": "7b9c0fa6e795af2d", "type": "change", "z": "b802892eed83e90f", "name": "setze Flow.BWM", "rules": [ { "t": "set", "p": "BWM", "pt": "flow", "to": "true", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 850, "y": 760, "wires": [ [ "b117dac109d51b34" ] ] }, { "id": "ccadbb1ee1de29e6", "type": "change", "z": "b802892eed83e90f", "name": "lösche Flow.BWM", "rules": [ { "t": "set", "p": "BWM", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 850, "y": 800, "wires": [ [ "b117dac109d51b34" ] ] }, { "id": "558db419c5c37cca", "type": "comment", "z": "b802892eed83e90f", "name": "evtl. gesperrt durch?? Beginn", "info": "", "x": 980, "y": 220, "wires": [] }, { "id": "d24a5429e472b18a", "type": "switch", "z": "b802892eed83e90f", "name": "nur true", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 740, "y": 240, "wires": [ [ "ab41883686b27cc0" ], [] ] }, { "id": "b117dac109d51b34", "type": "debug", "z": "b802892eed83e90f", "name": "debug 4", "active": false, "tosidebar": true, "console": false, "tostatus": false, "complete": "true", "targetType": "full", "statusVal": "", "statusType": "auto", "x": 1040, "y": 760, "wires": [] }, { "id": "91febc7692f9b822", "type": "change", "z": "b802892eed83e90f", "name": "", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "on", "fromt": "str", "to": "true", "tot": "bool" }, { "t": "change", "p": "payload", "pt": "msg", "from": "off", "fromt": "str", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1290, "y": 400, "wires": [ [ "d303b6e1817d8b77" ] ] }, { "id": "d303b6e1817d8b77", "type": "switch", "z": "b802892eed83e90f", "name": "", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" }, { "t": "eq", "v": "", "vt": "str" } ], "checkall": "true", "repair": false, "outputs": 3, "x": 1470, "y": 400, "wires": [ [ "331a07cfba2d7df1" ], [ "331a07cfba2d7df1", "574a9f7ddc4f663b" ], [] ] }, { "id": "b4e55cb04c30244e", "type": "switch", "z": "b802892eed83e90f", "name": "", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" }, { "t": "eq", "v": "", "vt": "str" } ], "checkall": "true", "repair": false, "outputs": 3, "x": 1770, "y": 260, "wires": [ [ "331a07cfba2d7df1" ], [ "331a07cfba2d7df1" ], [] ] }, { "id": "90c9685b4a5344dc", "type": "change", "z": "b802892eed83e90f", "name": "", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "on", "fromt": "str", "to": "true", "tot": "bool" }, { "t": "change", "p": "payload", "pt": "msg", "from": "off", "fromt": "str", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1610, "y": 260, "wires": [ [ "b4e55cb04c30244e" ] ] }, { "id": "ba0aea0ff71ebc3d", "type": "change", "z": "b802892eed83e90f", "name": "", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "on", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1250, "y": 260, "wires": [ [ "fa5f2b5bcd258a98" ] ] }, { "id": "6ae2e0e61f81faeb", "type": "ioBroker get", "z": "b802892eed83e90f", "name": "Virtuelle Lampe", "topic": "0_userdata.0.GordonX-Home.0.Küche.Virtueller_Schalter_1", "attrname": "payload", "payloadType": "value", "errOnInvalidState": "nothing", "x": 500, "y": 660, "wires": [ [ "cf3016a536d38a8d" ] ] }, { "id": "cf3016a536d38a8d", "type": "switch", "z": "b802892eed83e90f", "name": "true false", "property": "payload", "propertyType": "msg", "rules": [ { "t": "false" }, { "t": "true" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 680, "y": 660, "wires": [ [ "7eea52e80cbe51f0", "93f0d4c85ab42e59" ], [ "7b9c0fa6e795af2d", "87ec46662c49de4e", "f00e20abd94ff43d" ] ] }, { "id": "141a052859674836", "type": "change", "z": "b802892eed83e90f", "name": "Alles auf Anfang", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1380, "y": 640, "wires": [ [ "331a07cfba2d7df1" ] ] }, { "id": "87ec46662c49de4e", "type": "change", "z": "b802892eed83e90f", "name": "stop", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "stop", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1010, "y": 640, "wires": [ [ "d96f128a59bdfbb4" ] ] }, { "id": "ed2607cafe826532", "type": "mytimeout", "z": "b802892eed83e90f", "name": "45sek", "outtopic": "", "outsafe": "on", "outwarning": "Warning", "outunsafe": "off", "warning": "10", "timer": "60", "debug": false, "ndebug": false, "ignoreCase": false, "repeat": false, "again": false, "x": 1090, "y": 400, "wires": [ [ "91febc7692f9b822" ], [] ] }, { "id": "fa5f2b5bcd258a98", "type": "mytimeout", "z": "b802892eed83e90f", "name": "10Sek", "outtopic": "", "outsafe": "on", "outwarning": "Warning", "outunsafe": "off", "warning": "10", "timer": "30", "debug": false, "ndebug": false, "ignoreCase": false, "repeat": false, "again": false, "x": 1430, "y": 260, "wires": [ [ "90c9685b4a5344dc" ], [] ] }, { "id": "21f36ea2695afe19", "type": "ioBroker out", "z": "b802892eed83e90f", "name": "U-rechts", "topic": "tuya.0.bfb09eea5dad3699abyrbu.20", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 2140, "y": 600, "wires": [] }, { "id": "084e7114b7ed1c61", "type": "ioBroker out", "z": "b802892eed83e90f", "name": "Küche Decke", "topic": "tuya.0.bfe4af976feb74d845vugp.1", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 2210, "y": 460, "wires": [] }, { "id": "ff32f89078260f0e", "type": "ioBroker out", "z": "b802892eed83e90f", "name": "Virtuel Switch 1", "topic": "0_userdata.0.GordonX-Home.0.Küche.Virtueller_Schalter_1", "ack": "false", "autoCreate": "true", "stateName": "Simlulierte Lampe", "role": "value", "payloadType": "boolean", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 2160, "y": 540, "wires": [] }, { "id": "442c2ef743d9599f", "type": "debug", "z": "b802892eed83e90f", "name": "Küche", "active": false, "tosidebar": true, "console": true, "tostatus": false, "complete": "payload", "targetType": "msg", "statusVal": "", "statusType": "auto", "x": 2160, "y": 760, "wires": [] }, { "id": "67e2e01a1266d1c3", "type": "delay", "z": "b802892eed83e90f", "name": "100ms", "pauseType": "delay", "timeout": "100", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "allowrate": false, "outputs": 1, "x": 2070, "y": 460, "wires": [ [ "084e7114b7ed1c61" ] ] }, { "id": "e98816534075b0f5", "type": "change", "z": "b802892eed83e90f", "name": "Küche", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "1000", "fromt": "str", "to": "Küche", "tot": "str" }, { "t": "change", "p": "payload", "pt": "msg", "from": "true", "fromt": "bool", "to": "Küche eingeschaltet", "tot": "str" }, { "t": "change", "p": "payload", "pt": "msg", "from": "false", "fromt": "bool", "to": "Küche ausgeschaltet", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 2030, "y": 760, "wires": [ [ "442c2ef743d9599f" ] ] }, { "id": "a695276a00fe8f61", "type": "ioBroker out", "z": "b802892eed83e90f", "name": "U-links", "topic": "hue.0.Hue_GordonX.Küche_Unterschr_Links.on", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 2130, "y": 680, "wires": [] }, { "id": "802770af38c8534e", "type": "hue-bridge-node", "z": "b802892eed83e90f", "name": "Hue", "bridge": "cbd54dbabf6f65be", "autoupdates": true, "skipglobalevents": false, "initevents": false, "x": 130, "y": 160, "wires": [ [ "2e0c2a67486c0ac7" ] ] }, { "id": "2e0c2a67486c0ac7", "type": "hue-motion", "z": "b802892eed83e90f", "name": "Küche Motion Sensor", "bridge": "cbd54dbabf6f65be", "sensorid": "7529c8d8-9f5c-451d-ba56-70cacda84564", "skipevents": false, "initevents": true, "x": 360, "y": 160, "wires": [ [ "0395e4bbb7c67e21" ] ] }, { "id": "83e1205cab7afd75", "type": "inject", "z": "b802892eed83e90f", "name": "Takt", "props": [ { "p": "payload" }, { "p": "topic", "vt": "str" } ], "repeat": "1", "crontab": "", "once": true, "onceDelay": 0.1, "topic": "Takt", "payload": "true", "payloadType": "bool", "x": 130, "y": 60, "wires": [ [ "26a06677287b879b" ] ] }, { "id": "26a06677287b879b", "type": "change", "z": "b802892eed83e90f", "name": "", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "bewegung", "tot": "flow" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 370, "y": 60, "wires": [ [ "9c7c62ee37b6b12c" ] ] }, { "id": "c8bd53de95a27a58", "type": "inject", "z": "b802892eed83e90f", "name": "Test Schalter", "props": [ { "p": "payload" }, { "p": "topic", "vt": "str" } ], "repeat": "", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "", "payload": "1000", "payloadType": "num", "x": 130, "y": 520, "wires": [ [ "64bf8df5efc25d40", "f3921b2658b5916c" ] ] }, { "id": "b6322a40cf4557b3", "type": "change", "z": "b802892eed83e90f", "name": "lösche bewegung", "rules": [ { "t": "set", "p": "bewegung", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1390, "y": 680, "wires": [ [] ] }, { "id": "4208dd4576daa563", "type": "comment", "z": "b802892eed83e90f", "name": "Ende << Für Simulation Für Simulation Für Simulation Für Simulation >>", "info": "", "x": 270, "y": 580, "wires": [] }, { "id": "f6fea6b16f9005b0", "type": "comment", "z": "b802892eed83e90f", "name": "evtl. gesperrt durch?? Ende", "info": "", "x": 980, "y": 320, "wires": [] }, { "id": "64bf8df5efc25d40", "type": "delay", "z": "b802892eed83e90f", "name": "200 ms", "pauseType": "delay", "timeout": "200", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "allowrate": false, "outputs": 1, "x": 300, "y": 520, "wires": [ [ "d628f1137cfb08c1" ] ] }, { "id": "d628f1137cfb08c1", "type": "change", "z": "b802892eed83e90f", "name": "1002", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "1002", "tot": "num" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 430, "y": 520, "wires": [ [ "8355cf791b8a8b1b" ] ] }, { "id": "9a70fab410cfbdae", "type": "inject", "z": "b802892eed83e90f", "name": "Test Robi 8", "props": [ { "p": "payload" }, { "p": "topic", "vt": "str" } ], "repeat": "", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "", "payload": "8", "payloadType": "num", "x": 120, "y": 840, "wires": [ [ "6b214a0a59b5e04a" ] ] }, { "id": "10a3703ea5e9c5fd", "type": "inject", "z": "b802892eed83e90f", "name": "Test Robi 5", "props": [ { "p": "payload" }, { "p": "topic", "vt": "str" } ], "repeat": "", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "", "payload": "5", "payloadType": "num", "x": 120, "y": 900, "wires": [ [ "6b214a0a59b5e04a" ] ] }, { "id": "cbd54dbabf6f65be", "type": "hue-bridge", "name": "Hue GordonX", "bridge": "192.168.0.8", "key": "SlfyXwpcaEvRN0d1DU2JrrOlwrm9Debhhm9A4E-d", "worker": "10", "autoupdates": true, "disableupdates": false } ] -
@peterfido

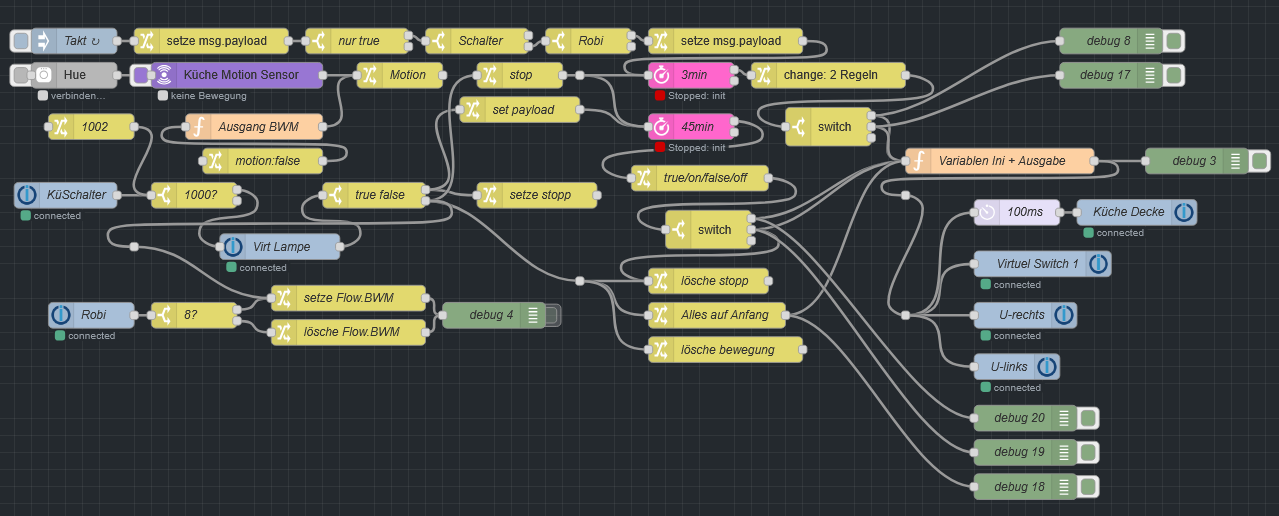

Also soweit funktionierts nur irgend etwas schaltet mitten drin nach klick schalter die lampen ab
hab schon paar debug nodes angehängt finde aber nicht wer das macht.
Wenn man nach der selbst abschaltung dann in den BWM läuft geht das licht wieder an.
Wenn man also schalter schaltet geht das licht nach paar sekunden alleine aus und es kommt keine debug ausgabe. geht man in den BWM gehts licht wieder an und bleibt auch für eingestellte zeit an und bei wiederbewegung blitzt das licht einmal kurz und ist dann aber wieder an.BWM / Roboter Sauger funktioniert soweit.
[ { "id": "cd388a27e1177b2a", "type": "tab", "label": "Flow 8", "disabled": false, "info": "", "env": [] }, { "id": "c858be985d04ff23", "type": "junction", "z": "cd388a27e1177b2a", "x": 680, "y": 560, "wires": [ [ "e52cacfb28f4eef0", "d4243e5842d002b7", "f4dd19c85bec8f67" ] ] }, { "id": "49ed5c100ffadbfb", "type": "junction", "z": "cd388a27e1177b2a", "x": 1060, "y": 600, "wires": [ [ "3da3568f5cb1d905", "d9b21aa55e80ae44", "c9f5b344739be161", "a0d644333024864d" ] ] }, { "id": "6b29472d446bd70a", "type": "junction", "z": "cd388a27e1177b2a", "x": 680, "y": 320, "wires": [ [ "1f6129972520dbc9", "2cf7c09b18238747" ] ] }, { "id": "97a52cd45dee491f", "type": "junction", "z": "cd388a27e1177b2a", "x": 1060, "y": 460, "wires": [ [ "49ed5c100ffadbfb" ] ] }, { "id": "17a82c94f393c061", "type": "junction", "z": "cd388a27e1177b2a", "x": 160, "y": 520, "wires": [ [ "34daca3383213026" ] ] }, { "id": "f2c58fd53288296d", "type": "debug", "z": "cd388a27e1177b2a", "name": "debug 3", "active": true, "tosidebar": true, "console": false, "tostatus": false, "complete": "true", "targetType": "full", "statusVal": "", "statusType": "auto", "x": 1400, "y": 420, "wires": [] }, { "id": "25ad2bdbb9a6a3f2", "type": "change", "z": "cd388a27e1177b2a", "name": "motion:false", "rules": [ { "t": "set", "p": "payload.motion", "pt": "msg", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 310, "y": 420, "wires": [ [ "c5344e2d70758330" ] ] }, { "id": "6fa8c560705cd84b", "type": "switch", "z": "cd388a27e1177b2a", "name": "Schalter", "property": "stopp", "propertyType": "flow", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 560, "y": 280, "wires": [ [], [ "e5b4dd5e0fdf55b3" ] ] }, { "id": "7cade0980ce23b6f", "type": "change", "z": "cd388a27e1177b2a", "name": "Motion", "rules": [ { "t": "set", "p": "bewegung", "pt": "flow", "to": "payload.motion", "tot": "msg" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 470, "y": 320, "wires": [ [] ] }, { "id": "1d02d4d287c62d8d", "type": "change", "z": "cd388a27e1177b2a", "name": "set payload", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "on", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 610, "y": 360, "wires": [ [ "1f6129972520dbc9" ] ] }, { "id": "edd034e0ac4e9dbd", "type": "switch", "z": "cd388a27e1177b2a", "name": "1000?", "property": "payload", "propertyType": "msg", "rules": [ { "t": "eq", "v": "1000", "vt": "num" }, { "t": "eq", "v": "", "vt": "num" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 230, "y": 460, "wires": [ [ "b3cf3d5c5932a0f1" ], [] ] }, { "id": "e5b4dd5e0fdf55b3", "type": "switch", "z": "cd388a27e1177b2a", "name": "Robi", "property": "BWM", "propertyType": "flow", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 690, "y": 280, "wires": [ [ "eb53173feca16754" ], [] ] }, { "id": "6ad2e1e41e7eba3d", "type": "change", "z": "cd388a27e1177b2a", "name": "setze stopp", "rules": [ { "t": "set", "p": "stopp", "pt": "flow", "to": "true", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 630, "y": 460, "wires": [ [] ] }, { "id": "d4243e5842d002b7", "type": "change", "z": "cd388a27e1177b2a", "name": "lösche stopp", "rules": [ { "t": "set", "p": "stopp", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 830, "y": 560, "wires": [ [] ] }, { "id": "0649103700725132", "type": "function", "z": "cd388a27e1177b2a", "name": "Variablen Ini + Ausgabe", "func": "node.status({ text: msg.payload });\n\nreturn msg;", "outputs": 1, "timeout": 0, "noerr": 0, "initialize": "// Der Code hier wird ausgeführt,\n// wenn der Node gestartet wird\n\nflow.set(\"stopp\", false);\nflow.set(\"BWM\", true);\nflow.set(\"bewegung\", false);\n", "finalize": "", "libs": [], "x": 1170, "y": 420, "wires": [ [ "f2c58fd53288296d", "97a52cd45dee491f" ] ] }, { "id": "5b195fc1f7acb5c0", "type": "ioBroker in", "z": "cd388a27e1177b2a", "name": "Robi", "attrname": "payload", "topic": "mihome-vacuum.0.info.state", "payloadType": "value", "onlyack": "", "func": "all", "gap": "", "fireOnStart": "false", "outFormat": "MQTT", "x": 110, "y": 600, "wires": [ [ "7f79db16bb82a357" ] ] }, { "id": "c5344e2d70758330", "type": "function", "z": "cd388a27e1177b2a", "name": "Ausgang BWM", "func": "\nreturn msg;", "outputs": 1, "timeout": 0, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 300, "y": 380, "wires": [ [ "7cade0980ce23b6f" ] ] }, { "id": "d4e6916ec6660771", "type": "ioBroker in", "z": "cd388a27e1177b2a", "name": "KüSchalter", "attrname": "payload", "topic": "hue.0.Hue_GordonX.Küche_Schalter.buttonevent", "payloadType": "value", "onlyack": "", "func": "all", "gap": "", "fireOnStart": "false", "outFormat": "MQTT", "x": 80, "y": 460, "wires": [ [ "edd034e0ac4e9dbd" ] ] }, { "id": "7f79db16bb82a357", "type": "switch", "z": "cd388a27e1177b2a", "name": "8?", "property": "payload", "propertyType": "msg", "rules": [ { "t": "eq", "v": "8", "vt": "num" }, { "t": "neq", "v": "8", "vt": "num" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 230, "y": 600, "wires": [ [ "34daca3383213026" ], [ "9725d7651f53e931" ] ] }, { "id": "34daca3383213026", "type": "change", "z": "cd388a27e1177b2a", "name": "setze Flow.BWM", "rules": [ { "t": "set", "p": "BWM", "pt": "flow", "to": "true", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 410, "y": 580, "wires": [ [ "3d95821769504d11" ] ] }, { "id": "9725d7651f53e931", "type": "change", "z": "cd388a27e1177b2a", "name": "lösche Flow.BWM", "rules": [ { "t": "set", "p": "BWM", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 410, "y": 620, "wires": [ [ "3d95821769504d11" ] ] }, { "id": "6a9e975c8a2cb22e", "type": "switch", "z": "cd388a27e1177b2a", "name": "nur true", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 420, "y": 280, "wires": [ [ "6fa8c560705cd84b" ], [] ] }, { "id": "3d95821769504d11", "type": "debug", "z": "cd388a27e1177b2a", "name": "debug 4", "active": false, "tosidebar": true, "console": false, "tostatus": false, "complete": "true", "targetType": "full", "statusVal": "", "statusType": "auto", "x": 580, "y": 600, "wires": [] }, { "id": "19d59c4b02bc1d4e", "type": "change", "z": "cd388a27e1177b2a", "name": "true/on/false/off", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "on", "fromt": "str", "to": "true", "tot": "bool" }, { "t": "change", "p": "payload", "pt": "msg", "from": "off", "fromt": "str", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 820, "y": 440, "wires": [ [ "2b6788c8f61bc75d" ] ] }, { "id": "2b6788c8f61bc75d", "type": "switch", "z": "cd388a27e1177b2a", "name": "", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" }, { "t": "eq", "v": "", "vt": "str" } ], "checkall": "true", "repair": false, "outputs": 3, "x": 830, "y": 500, "wires": [ [ "0649103700725132", "22f763e23b4b426d" ], [ "0649103700725132", "d4243e5842d002b7", "078d3cdea12da58a" ], [] ] }, { "id": "81379b4c78eb5084", "type": "switch", "z": "cd388a27e1177b2a", "name": "", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" }, { "t": "eq", "v": "", "vt": "str" } ], "checkall": "true", "repair": false, "outputs": 3, "x": 970, "y": 380, "wires": [ [ "0649103700725132", "cada2da2ed2bfaf6" ], [ "0649103700725132", "c38db948a076700c" ], [] ] }, { "id": "6d74347a2369c9b1", "type": "change", "z": "cd388a27e1177b2a", "name": "", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "on", "fromt": "str", "to": "true", "tot": "bool" }, { "t": "change", "p": "payload", "pt": "msg", "from": "off", "fromt": "str", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 970, "y": 320, "wires": [ [ "81379b4c78eb5084" ] ] }, { "id": "eb53173feca16754", "type": "change", "z": "cd388a27e1177b2a", "name": "", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "on", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 850, "y": 280, "wires": [ [ "2cf7c09b18238747" ] ] }, { "id": "b3cf3d5c5932a0f1", "type": "ioBroker get", "z": "cd388a27e1177b2a", "name": "Virt Lampe", "topic": "0_userdata.0.GordonX-Home.0.Küche.Virtueller_Schalter_1", "attrname": "payload", "payloadType": "value", "errOnInvalidState": "nothing", "x": 330, "y": 520, "wires": [ [ "fe9075ec01f6e19a" ] ] }, { "id": "fe9075ec01f6e19a", "type": "switch", "z": "cd388a27e1177b2a", "name": "true false", "property": "payload", "propertyType": "msg", "rules": [ { "t": "false" }, { "t": "true" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 440, "y": 460, "wires": [ [ "6ad2e1e41e7eba3d", "1d02d4d287c62d8d" ], [ "6fda00babbc6c3cf", "c858be985d04ff23", "17a82c94f393c061" ] ] }, { "id": "e52cacfb28f4eef0", "type": "change", "z": "cd388a27e1177b2a", "name": "Alles auf Anfang", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 840, "y": 600, "wires": [ [ "0649103700725132", "0e6b80937690ec94" ] ] }, { "id": "6fda00babbc6c3cf", "type": "change", "z": "cd388a27e1177b2a", "name": "stop", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "stop", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 610, "y": 320, "wires": [ [ "6b29472d446bd70a" ] ] }, { "id": "1f6129972520dbc9", "type": "mytimeout", "z": "cd388a27e1177b2a", "name": "45min", "outtopic": "", "outsafe": "on", "outwarning": "Warning", "outunsafe": "off", "warning": "10", "timer": "2700", "debug": false, "ndebug": false, "ignoreCase": false, "repeat": false, "again": false, "x": 810, "y": 380, "wires": [ [ "19d59c4b02bc1d4e" ], [] ] }, { "id": "2cf7c09b18238747", "type": "mytimeout", "z": "cd388a27e1177b2a", "name": "3min", "outtopic": "", "outsafe": "on", "outwarning": "Warning", "outunsafe": "off", "warning": "10", "timer": "90", "debug": false, "ndebug": false, "ignoreCase": false, "repeat": false, "again": false, "x": 810, "y": 320, "wires": [ [ "6d74347a2369c9b1" ], [] ] }, { "id": "c9f5b344739be161", "type": "ioBroker out", "z": "cd388a27e1177b2a", "name": "U-rechts", "topic": "tuya.0.bfb09eea5dad3699abyrbu.20", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1200, "y": 600, "wires": [] }, { "id": "eb0a77e50a594126", "type": "ioBroker out", "z": "cd388a27e1177b2a", "name": "Küche Decke", "topic": "tuya.0.bfe4af976feb74d845vugp.1", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1330, "y": 480, "wires": [] }, { "id": "3da3568f5cb1d905", "type": "ioBroker out", "z": "cd388a27e1177b2a", "name": "Virtuel Switch 1", "topic": "0_userdata.0.GordonX-Home.0.Küche.Virtueller_Schalter_1", "ack": "false", "autoCreate": "true", "stateName": "Simlulierte Lampe", "role": "value", "payloadType": "boolean", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1220, "y": 540, "wires": [] }, { "id": "d9b21aa55e80ae44", "type": "delay", "z": "cd388a27e1177b2a", "name": "100ms", "pauseType": "delay", "timeout": "100", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "allowrate": false, "outputs": 1, "x": 1190, "y": 480, "wires": [ [ "eb0a77e50a594126" ] ] }, { "id": "a0d644333024864d", "type": "ioBroker out", "z": "cd388a27e1177b2a", "name": "U-links", "topic": "hue.0.Hue_GordonX.Küche_Unterschr_Links.on", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1190, "y": 660, "wires": [] }, { "id": "749bbf25ef1c6f5d", "type": "hue-bridge-node", "z": "cd388a27e1177b2a", "name": "Hue", "bridge": "cbd54dbabf6f65be", "autoupdates": true, "skipglobalevents": false, "initevents": false, "x": 90, "y": 320, "wires": [ [ "7e046925a0149339" ] ] }, { "id": "7e046925a0149339", "type": "hue-motion", "z": "cd388a27e1177b2a", "name": "Küche Motion Sensor", "bridge": "cbd54dbabf6f65be", "sensorid": "7529c8d8-9f5c-451d-ba56-70cacda84564", "skipevents": false, "initevents": true, "x": 280, "y": 320, "wires": [ [ "7cade0980ce23b6f" ] ] }, { "id": "6744591312f4367c", "type": "inject", "z": "cd388a27e1177b2a", "name": "Takt", "props": [ { "p": "payload" }, { "p": "topic", "vt": "str" } ], "repeat": "1", "crontab": "", "once": true, "onceDelay": 0.1, "topic": "Takt", "payload": "true", "payloadType": "bool", "x": 90, "y": 280, "wires": [ [ "19d0869e86da09b3" ] ] }, { "id": "19d0869e86da09b3", "type": "change", "z": "cd388a27e1177b2a", "name": "", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "bewegung", "tot": "flow" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 250, "y": 280, "wires": [ [ "6a9e975c8a2cb22e" ] ] }, { "id": "f4dd19c85bec8f67", "type": "change", "z": "cd388a27e1177b2a", "name": "lösche bewegung", "rules": [ { "t": "set", "p": "bewegung", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 850, "y": 640, "wires": [ [] ] }, { "id": "14cbab0539105d58", "type": "change", "z": "cd388a27e1177b2a", "name": "1002", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "1000", "tot": "num" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 110, "y": 380, "wires": [ [ "edd034e0ac4e9dbd" ] ] }, { "id": "cada2da2ed2bfaf6", "type": "debug", "z": "cd388a27e1177b2a", "name": "debug 8", "active": true, "tosidebar": true, "console": false, "tostatus": false, "complete": "false", "statusVal": "", "statusType": "auto", "x": 1300, "y": 280, "wires": [] }, { "id": "c38db948a076700c", "type": "debug", "z": "cd388a27e1177b2a", "name": "debug 17", "active": true, "tosidebar": true, "console": false, "tostatus": false, "complete": "false", "statusVal": "", "statusType": "auto", "x": 1300, "y": 320, "wires": [] }, { "id": "0e6b80937690ec94", "type": "debug", "z": "cd388a27e1177b2a", "name": "debug 18", "active": true, "tosidebar": true, "console": false, "tostatus": false, "complete": "false", "statusVal": "", "statusType": "auto", "x": 1200, "y": 800, "wires": [] }, { "id": "078d3cdea12da58a", "type": "debug", "z": "cd388a27e1177b2a", "name": "debug 19", "active": true, "tosidebar": true, "console": false, "tostatus": false, "complete": "false", "statusVal": "", "statusType": "auto", "x": 1200, "y": 760, "wires": [] }, { "id": "22f763e23b4b426d", "type": "debug", "z": "cd388a27e1177b2a", "name": "debug 20", "active": true, "tosidebar": true, "console": false, "tostatus": false, "complete": "false", "statusVal": "", "statusType": "auto", "x": 1200, "y": 720, "wires": [] }, { "id": "cbd54dbabf6f65be", "type": "hue-bridge", "name": "Hue GordonX", "bridge": "192.168.0.8", "key": "SlfyXwpcaEvRN0d1DU2JrrOlwrm9Debhhm9A4E-d", "worker": "10", "autoupdates": true, "disableupdates": false } ]
-
@aphofis
Das hier sollte anzeigen, wer da wo den Schaltbefehl gibt:
[ { "id": "b802892eed83e90f", "type": "tab", "label": "Flow 8", "disabled": false, "info": "", "env": [] }, { "id": "f00e20abd94ff43d", "type": "junction", "z": "b802892eed83e90f", "x": 1120, "y": 660, "wires": [ [ "141a052859674836", "574a9f7ddc4f663b", "b6322a40cf4557b3" ] ] }, { "id": "423ea0f1dc0e4d31", "type": "junction", "z": "b802892eed83e90f", "x": 1960, "y": 460, "wires": [ [ "ff32f89078260f0e", "67e2e01a1266d1c3", "e98816534075b0f5", "21f36ea2695afe19", "a695276a00fe8f61" ] ] }, { "id": "ae8ceff406113f11", "type": "junction", "z": "b802892eed83e90f", "x": 1140, "y": 260, "wires": [ [ "ba0aea0ff71ebc3d" ] ] }, { "id": "9c7c62ee37b6b12c", "type": "junction", "z": "b802892eed83e90f", "x": 520, "y": 60, "wires": [ [ "d24a5429e472b18a" ] ] }, { "id": "d96f128a59bdfbb4", "type": "junction", "z": "b802892eed83e90f", "x": 900, "y": 440, "wires": [ [ "84bd4ea1d044fea4", "ed2607cafe826532" ] ] }, { "id": "84bd4ea1d044fea4", "type": "junction", "z": "b802892eed83e90f", "x": 980, "y": 360, "wires": [ [ "be66da991b562e24" ] ] }, { "id": "be66da991b562e24", "type": "junction", "z": "b802892eed83e90f", "x": 1280, "y": 360, "wires": [ [ "fa5f2b5bcd258a98" ] ] }, { "id": "8355cf791b8a8b1b", "type": "junction", "z": "b802892eed83e90f", "x": 580, "y": 560, "wires": [ [ "e22b60db6265e908" ] ] }, { "id": "1ee1fe89c1628b34", "type": "junction", "z": "b802892eed83e90f", "x": 580, "y": 560, "wires": [ [ "e22b60db6265e908" ] ] }, { "id": "f3921b2658b5916c", "type": "junction", "z": "b802892eed83e90f", "x": 240, "y": 560, "wires": [ [ "1ee1fe89c1628b34" ] ] }, { "id": "a2104cdffd7ca75f", "type": "inject", "z": "b802892eed83e90f", "name": "Test Bewegung", "props": [ { "p": "payload.motion", "v": "true", "vt": "bool" }, { "p": "topic", "vt": "str" } ], "repeat": "", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "Bewegungsmelder", "x": 140, "y": 380, "wires": [ [ "a919a4c30d900c39", "0150c15cf7b51170" ] ] }, { "id": "ed06e85de97289c8", "type": "debug", "z": "b802892eed83e90f", "name": "debug 3", "active": true, "tosidebar": true, "console": false, "tostatus": false, "complete": "true", "targetType": "full", "statusVal": "", "statusType": "auto", "x": 2000, "y": 360, "wires": [] }, { "id": "a919a4c30d900c39", "type": "delay", "z": "b802892eed83e90f", "name": "", "pauseType": "delay", "timeout": "30", "timeoutUnits": "seconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "allowrate": false, "outputs": 1, "x": 150, "y": 460, "wires": [ [ "bee64eb116d76ed1" ] ] }, { "id": "bee64eb116d76ed1", "type": "change", "z": "b802892eed83e90f", "name": "motion:false", "rules": [ { "t": "set", "p": "payload.motion", "pt": "msg", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 350, "y": 460, "wires": [ [ "0150c15cf7b51170" ] ] }, { "id": "ab41883686b27cc0", "type": "switch", "z": "b802892eed83e90f", "name": "Schalter", "property": "stopp", "propertyType": "flow", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 920, "y": 260, "wires": [ [], [ "01fea99b98c641a3" ] ] }, { "id": "0395e4bbb7c67e21", "type": "change", "z": "b802892eed83e90f", "name": "Motion", "rules": [ { "t": "set", "p": "bewegung", "pt": "flow", "to": "payload.motion", "tot": "msg" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 670, "y": 320, "wires": [ [] ] }, { "id": "59792b228df9eb30", "type": "comment", "z": "b802892eed83e90f", "name": "Beginn << Für Simulation Für Simulation Für Simulation Für Simulation >>", "info": "", "x": 280, "y": 300, "wires": [] }, { "id": "93f0d4c85ab42e59", "type": "change", "z": "b802892eed83e90f", "name": "", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "on", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 710, "y": 400, "wires": [ [ "ed2607cafe826532" ] ] }, { "id": "e22b60db6265e908", "type": "switch", "z": "b802892eed83e90f", "name": "1000?", "property": "payload", "propertyType": "msg", "rules": [ { "t": "eq", "v": "1000", "vt": "num" }, { "t": "eq", "v": "", "vt": "num" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 270, "y": 660, "wires": [ [ "6ae2e0e61f81faeb" ], [] ] }, { "id": "01fea99b98c641a3", "type": "switch", "z": "b802892eed83e90f", "name": "Robi", "property": "robi", "propertyType": "flow", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 1050, "y": 260, "wires": [ [ "ae8ceff406113f11" ], [] ] }, { "id": "7eea52e80cbe51f0", "type": "change", "z": "b802892eed83e90f", "name": "setze stopp", "rules": [ { "t": "set", "p": "stopp", "pt": "flow", "to": "true", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 950, "y": 600, "wires": [ [] ] }, { "id": "574a9f7ddc4f663b", "type": "change", "z": "b802892eed83e90f", "name": "lösche stopp", "rules": [ { "t": "set", "p": "stopp", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1370, "y": 600, "wires": [ [] ] }, { "id": "331a07cfba2d7df1", "type": "function", "z": "b802892eed83e90f", "name": "Variablen Ini + Ausgabe", "func": "if(msg.payload){\n msg.topic = msg.topic + \": Licht ein\";\n}else{\n msg.topic = msg.topic + \": Licht aus\";\n}\n\nmsg.topic += \", robi:\" + flow.get(\"robi\");\nnode.status({ text: msg.topic });\n\nreturn msg;", "outputs": 1, "timeout": 0, "noerr": 0, "initialize": "// Der Code hier wird ausgeführt,\n// wenn der Node gestartet wird\n\nflow.set(\"stopp\", false);\nflow.set(\"robi\", true);\nflow.set(\"bewegung\", false);\n", "finalize": "", "libs": [], "x": 1770, "y": 380, "wires": [ [ "ed06e85de97289c8", "423ea0f1dc0e4d31" ] ] }, { "id": "b9692c9131fb2ef5", "type": "ioBroker in", "z": "b802892eed83e90f", "name": "Robi", "attrname": "payload", "topic": "mihome-vacuum.0.info.state", "payloadType": "value", "onlyack": "", "func": "rbe-preinitvalue", "gap": "", "fireOnStart": "true", "outFormat": "MQTT", "x": 90, "y": 780, "wires": [ [ "6b214a0a59b5e04a" ] ] }, { "id": "0150c15cf7b51170", "type": "function", "z": "b802892eed83e90f", "name": "Ausgang BWM", "func": "\nreturn msg;", "outputs": 1, "timeout": 0, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 360, "y": 360, "wires": [ [ "0395e4bbb7c67e21" ] ] }, { "id": "b6b4c157c31e3701", "type": "ioBroker in", "z": "b802892eed83e90f", "name": "KüSchalter", "attrname": "payload", "topic": "hue.0.Hue_GordonX.Küche_Schalter.buttonevent", "payloadType": "value", "onlyack": "", "func": "all", "gap": "", "fireOnStart": "false", "outFormat": "MQTT", "x": 100, "y": 680, "wires": [ [ "e22b60db6265e908" ] ] }, { "id": "6b214a0a59b5e04a", "type": "switch", "z": "b802892eed83e90f", "name": "8?", "property": "payload", "propertyType": "msg", "rules": [ { "t": "eq", "v": "8", "vt": "num" }, { "t": "neq", "v": "8", "vt": "num" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 630, "y": 780, "wires": [ [ "7b9c0fa6e795af2d" ], [ "ccadbb1ee1de29e6" ] ] }, { "id": "7b9c0fa6e795af2d", "type": "change", "z": "b802892eed83e90f", "name": "setze Flow.robi", "rules": [ { "t": "set", "p": "robi", "pt": "flow", "to": "true", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 840, "y": 760, "wires": [ [ "b117dac109d51b34" ] ] }, { "id": "ccadbb1ee1de29e6", "type": "change", "z": "b802892eed83e90f", "name": "lösche Flow.robi", "rules": [ { "t": "set", "p": "robi", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 840, "y": 800, "wires": [ [ "b117dac109d51b34" ] ] }, { "id": "558db419c5c37cca", "type": "comment", "z": "b802892eed83e90f", "name": "evtl. gesperrt durch?? Beginn", "info": "", "x": 980, "y": 220, "wires": [] }, { "id": "d24a5429e472b18a", "type": "switch", "z": "b802892eed83e90f", "name": "nur true", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 720, "y": 240, "wires": [ [ "ab41883686b27cc0" ], [] ] }, { "id": "b117dac109d51b34", "type": "debug", "z": "b802892eed83e90f", "name": "debug 4", "active": false, "tosidebar": true, "console": false, "tostatus": false, "complete": "true", "targetType": "full", "statusVal": "", "statusType": "auto", "x": 1040, "y": 760, "wires": [] }, { "id": "91febc7692f9b822", "type": "change", "z": "b802892eed83e90f", "name": "", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "on", "fromt": "str", "to": "true", "tot": "bool" }, { "t": "change", "p": "payload", "pt": "msg", "from": "off", "fromt": "str", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1290, "y": 400, "wires": [ [ "d303b6e1817d8b77" ] ] }, { "id": "d303b6e1817d8b77", "type": "switch", "z": "b802892eed83e90f", "name": "", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" }, { "t": "eq", "v": "", "vt": "str" } ], "checkall": "true", "repair": false, "outputs": 3, "x": 1470, "y": 400, "wires": [ [ "331a07cfba2d7df1" ], [ "331a07cfba2d7df1", "574a9f7ddc4f663b" ], [] ] }, { "id": "b4e55cb04c30244e", "type": "switch", "z": "b802892eed83e90f", "name": "", "property": "payload", "propertyType": "msg", "rules": [ { "t": "true" }, { "t": "false" }, { "t": "eq", "v": "", "vt": "str" } ], "checkall": "true", "repair": false, "outputs": 3, "x": 1770, "y": 260, "wires": [ [ "331a07cfba2d7df1" ], [ "331a07cfba2d7df1" ], [] ] }, { "id": "90c9685b4a5344dc", "type": "change", "z": "b802892eed83e90f", "name": "", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "on", "fromt": "str", "to": "true", "tot": "bool" }, { "t": "change", "p": "payload", "pt": "msg", "from": "off", "fromt": "str", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1610, "y": 260, "wires": [ [ "b4e55cb04c30244e" ] ] }, { "id": "ba0aea0ff71ebc3d", "type": "change", "z": "b802892eed83e90f", "name": "", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "on", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1250, "y": 260, "wires": [ [ "fa5f2b5bcd258a98" ] ] }, { "id": "6ae2e0e61f81faeb", "type": "ioBroker get", "z": "b802892eed83e90f", "name": "Virtuelle Lampe", "topic": "0_userdata.0.GordonX-Home.0.Küche.Virtueller_Schalter_1", "attrname": "payload", "payloadType": "value", "errOnInvalidState": "nothing", "x": 440, "y": 660, "wires": [ [ "f8d92d8cb9d60184" ] ] }, { "id": "cf3016a536d38a8d", "type": "switch", "z": "b802892eed83e90f", "name": "true false", "property": "payload", "propertyType": "msg", "rules": [ { "t": "false" }, { "t": "true" } ], "checkall": "true", "repair": false, "outputs": 2, "x": 760, "y": 660, "wires": [ [ "7eea52e80cbe51f0", "93f0d4c85ab42e59" ], [ "7b9c0fa6e795af2d", "87ec46662c49de4e", "f00e20abd94ff43d" ] ] }, { "id": "141a052859674836", "type": "change", "z": "b802892eed83e90f", "name": "Alles auf Anfang", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1380, "y": 640, "wires": [ [ "331a07cfba2d7df1" ] ] }, { "id": "87ec46662c49de4e", "type": "change", "z": "b802892eed83e90f", "name": "stop", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "stop", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1070, "y": 640, "wires": [ [ "d96f128a59bdfbb4" ] ] }, { "id": "ed2607cafe826532", "type": "mytimeout", "z": "b802892eed83e90f", "name": "45sek", "outtopic": "Schalter 1000", "outsafe": "on", "outwarning": "Warning", "outunsafe": "off", "warning": "10", "timer": "60", "debug": false, "ndebug": false, "ignoreCase": false, "repeat": false, "again": false, "x": 1090, "y": 400, "wires": [ [ "91febc7692f9b822" ], [] ] }, { "id": "fa5f2b5bcd258a98", "type": "mytimeout", "z": "b802892eed83e90f", "name": "10Sek", "outtopic": "BWM", "outsafe": "on", "outwarning": "Warning", "outunsafe": "off", "warning": "10", "timer": "30", "debug": false, "ndebug": false, "ignoreCase": false, "repeat": false, "again": false, "x": 1430, "y": 260, "wires": [ [ "90c9685b4a5344dc" ], [] ] }, { "id": "21f36ea2695afe19", "type": "ioBroker out", "z": "b802892eed83e90f", "name": "U-rechts", "topic": "tuya.0.bfb09eea5dad3699abyrbu.20", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 2140, "y": 600, "wires": [] }, { "id": "084e7114b7ed1c61", "type": "ioBroker out", "z": "b802892eed83e90f", "name": "Küche Decke", "topic": "tuya.0.bfe4af976feb74d845vugp.1", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 2210, "y": 460, "wires": [] }, { "id": "ff32f89078260f0e", "type": "ioBroker out", "z": "b802892eed83e90f", "name": "Virtuel Switch 1", "topic": "0_userdata.0.GordonX-Home.0.Küche.Virtueller_Schalter_1", "ack": "false", "autoCreate": "true", "stateName": "Simlulierte Lampe", "role": "value", "payloadType": "boolean", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 2160, "y": 540, "wires": [] }, { "id": "442c2ef743d9599f", "type": "debug", "z": "b802892eed83e90f", "name": "Küche", "active": false, "tosidebar": true, "console": true, "tostatus": false, "complete": "payload", "targetType": "msg", "statusVal": "", "statusType": "auto", "x": 2160, "y": 760, "wires": [] }, { "id": "67e2e01a1266d1c3", "type": "delay", "z": "b802892eed83e90f", "name": "100ms", "pauseType": "delay", "timeout": "100", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "allowrate": false, "outputs": 1, "x": 2070, "y": 460, "wires": [ [ "084e7114b7ed1c61" ] ] }, { "id": "e98816534075b0f5", "type": "change", "z": "b802892eed83e90f", "name": "Küche", "rules": [ { "t": "change", "p": "payload", "pt": "msg", "from": "1000", "fromt": "str", "to": "Küche", "tot": "str" }, { "t": "change", "p": "payload", "pt": "msg", "from": "true", "fromt": "bool", "to": "Küche eingeschaltet", "tot": "str" }, { "t": "change", "p": "payload", "pt": "msg", "from": "false", "fromt": "bool", "to": "Küche ausgeschaltet", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 2030, "y": 760, "wires": [ [ "442c2ef743d9599f" ] ] }, { "id": "a695276a00fe8f61", "type": "ioBroker out", "z": "b802892eed83e90f", "name": "U-links", "topic": "hue.0.Hue_GordonX.Küche_Unterschr_Links.on", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 2130, "y": 680, "wires": [] }, { "id": "802770af38c8534e", "type": "hue-bridge-node", "z": "b802892eed83e90f", "name": "Hue", "bridge": "cbd54dbabf6f65be", "autoupdates": true, "skipglobalevents": false, "initevents": false, "x": 130, "y": 160, "wires": [ [ "2e0c2a67486c0ac7" ] ] }, { "id": "2e0c2a67486c0ac7", "type": "hue-motion", "z": "b802892eed83e90f", "name": "Küche Motion Sensor", "bridge": "cbd54dbabf6f65be", "sensorid": "7529c8d8-9f5c-451d-ba56-70cacda84564", "skipevents": false, "initevents": true, "x": 360, "y": 160, "wires": [ [ "0395e4bbb7c67e21" ] ] }, { "id": "83e1205cab7afd75", "type": "inject", "z": "b802892eed83e90f", "name": "Takt", "props": [ { "p": "payload" }, { "p": "topic", "vt": "str" } ], "repeat": "1", "crontab": "", "once": true, "onceDelay": 0.1, "topic": "Takt", "payload": "true", "payloadType": "bool", "x": 130, "y": 60, "wires": [ [ "26a06677287b879b" ] ] }, { "id": "26a06677287b879b", "type": "change", "z": "b802892eed83e90f", "name": "", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "bewegung", "tot": "flow" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 370, "y": 60, "wires": [ [ "9c7c62ee37b6b12c" ] ] }, { "id": "c8bd53de95a27a58", "type": "inject", "z": "b802892eed83e90f", "name": "Test Schalter", "props": [ { "p": "payload" }, { "p": "topic", "vt": "str" } ], "repeat": "", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "", "payload": "1000", "payloadType": "num", "x": 130, "y": 520, "wires": [ [ "64bf8df5efc25d40", "f3921b2658b5916c" ] ] }, { "id": "b6322a40cf4557b3", "type": "change", "z": "b802892eed83e90f", "name": "lösche bewegung", "rules": [ { "t": "set", "p": "bewegung", "pt": "flow", "to": "false", "tot": "bool" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 1390, "y": 680, "wires": [ [] ] }, { "id": "4208dd4576daa563", "type": "comment", "z": "b802892eed83e90f", "name": "Ende << Für Simulation Für Simulation Für Simulation Für Simulation >>", "info": "", "x": 270, "y": 580, "wires": [] }, { "id": "f6fea6b16f9005b0", "type": "comment", "z": "b802892eed83e90f", "name": "evtl. gesperrt durch?? Ende", "info": "", "x": 980, "y": 320, "wires": [] }, { "id": "64bf8df5efc25d40", "type": "delay", "z": "b802892eed83e90f", "name": "200 ms", "pauseType": "delay", "timeout": "200", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "allowrate": false, "outputs": 1, "x": 300, "y": 520, "wires": [ [ "d628f1137cfb08c1" ] ] }, { "id": "d628f1137cfb08c1", "type": "change", "z": "b802892eed83e90f", "name": "1002", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "1002", "tot": "num" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 430, "y": 520, "wires": [ [ "8355cf791b8a8b1b" ] ] }, { "id": "9a70fab410cfbdae", "type": "inject", "z": "b802892eed83e90f", "name": "Test Robi 8", "props": [ { "p": "payload" }, { "p": "topic", "vt": "str" } ], "repeat": "", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "", "payload": "8", "payloadType": "num", "x": 120, "y": 840, "wires": [ [ "6b214a0a59b5e04a" ] ] }, { "id": "10a3703ea5e9c5fd", "type": "inject", "z": "b802892eed83e90f", "name": "Test Robi 5", "props": [ { "p": "payload" }, { "p": "topic", "vt": "str" } ], "repeat": "", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "", "payload": "5", "payloadType": "num", "x": 120, "y": 900, "wires": [ [ "6b214a0a59b5e04a" ] ] }, { "id": "f8d92d8cb9d60184", "type": "change", "z": "b802892eed83e90f", "name": "topic", "rules": [ { "t": "set", "p": "topic", "pt": "msg", "to": "Schalter 1000", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 610, "y": 660, "wires": [ [ "cf3016a536d38a8d" ] ] }, { "id": "cbd54dbabf6f65be", "type": "hue-bridge", "name": "Hue GordonX", "bridge": "192.168.0.8", "key": "SlfyXwpcaEvRN0d1DU2JrrOlwrm9Debhhm9A4E-d", "worker": "10", "autoupdates": true, "disableupdates": false } ]Im Prinzip kann alles so bleiben. Evtl. Hue nebst Motion Sensor einrichten. Der BWM Simulator tut nix, wenn man nicht die Inject-Node davon klickt. Das gleiche beim Test Schalter. Lass die drin, dann ist die Chance größer, dass ich Deine Exporte importiere und teste.
-
bin beim Testen, mal sehen was dabei raus kommt.
-

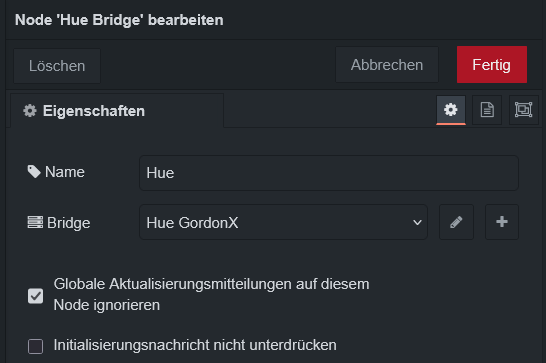

Also das immer wieder das Licht eingeschaltet wird wenn man in den BWM läuft und dann per Schalter ausschalten will und dieses 2-3 mal machen musste bis das Licht aus bleibt, lag am HUE Node. Die Globale Aktualisierungsmitteilungen auf diesem Node ignorieren, musste angehakt sein. Jetzt läuft die Steuerung tadellos.
